UBio-X Pro
Advanced Face & Fingerprint Recognition Terminal
UBio-X Pro, a face authentication system
equipped with the world’s highest performance
facial recognition algorithm
The World’s Best Performance Face Recognition Terminal
UBio-X pro is our brand face access control and time and attendance terminal, recognizes face at pro at a distance up to 3 meters, authenticates when users walk through the gates.
Features
Equipped with a high definition camera
to provide the fastest matching speed
while maintaining the highest accuracy.
High Performance Face Algorithm
100,000 Face Templates within 1sec
Massive Memory
UBio-X Pro is equipped with a powerful 1.0 GHz Quad Core Processor and with it’s built-in large memory capacity allows storage up to 500,000 templates, 10,000,000 event logs and 20,000 image logs of each transaction.
Improved Usability
With its 5” LCD touch screen it provides the user
with a clean, wide and easy to use graphical interface
Various Applications
UBio-X Pro can be used in various applications and environments such as Access Control, Time and Attendance and Large Scale Integrated Security Centres.
Food and materials
manufacturing factory
Construction Sites
Bank
R&D Center
Office

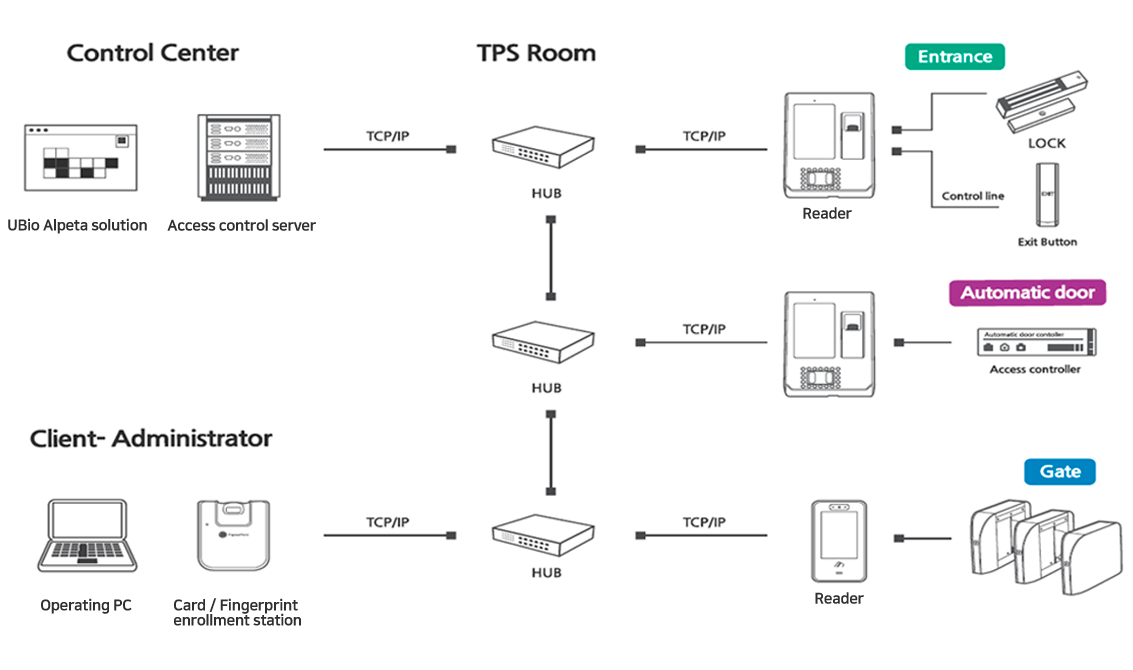

System Configuration
Specification
| Model Name | UBio-X Pro | |||
|---|---|---|---|---|
| Authentication Method | Face/Fingerprint/Card | |||
| Dust/Water Resistance | X | |||
| Memory | Max Users | card | (1:1) / (1:N) | 500,000 |
| Fingerprint (Base on one finger enrollment per user) |
1:1 | 500,000 | ||
| 1:N | 100,000 | |||
| Face (Base on five Face enrollment per user) |
1:1 | 200,000 | ||
| 1:N | 30,000 | |||
| Templates | Fingerprint | (1:1) | 1,000,000 | |
| (1:N) | 200,000 | |||
| MAX Templates per Finger | 2 | |||
| MAX Finger per User | 10 | |||
| Face | 1:1 | 1,000,000 | ||
| 1:N | 150,000 | |||
| MAX Templates per Face | 10 | |||
| Logs | 10,000,000 | |||
| Images | 20,000 | |||
| Communication | with server | TCP/IP | ||
| Other | SD Card | |||
| Wireless LAN(Wi-Fi) | Optional | |||
| Wiegand OUT | O | |||
| RS232 | O | |||
| RS485 | O | |||
| Wiegand IN | O | |||
| Display | LCD | 5"Color Touch | ||
| Backlight | O | |||
| Card | 125khz-EM | O | ||
| HID Prox | O | |||
| HID iclass | O | |||
| 13.56MHz Smart Card | O | |||
| Embedded Camera | Dual | |||
| Keypad | Touch Screen | |||
| Function keys | SOFT | |||
| Door Phone | X | |||
| FP Sensor (Platen Area) | 15.5 X 19 mm | |||
| Resolution | 500dpi | |||
| Dimension | (W) X (H) X (D) mm | 149.7 x 208 x 89.7mm | ||
| FRR /FAR | 0.1% / 0.0001% | |||
| Operating Illuminance (lux) | 30,000 | |||
| Operating Temperature | -20 ~ 60℃ | |||
| Opertating Software (Server solution) | UNIS 4.5, UBio Alpeta | |||
