FOH02
เครื่องเก็บลายนิ้วมือชนิด USB
(USB Scanner)
FOH02 is a fingerprint scanner and multi card reader of USB type.
Features
Live Finger Detection (LFD) Technology
FOH02 is equipped with our Live Finger Detection technology that distinguish fake fingerprints made from various materials including clay, rubber, silicon, glue, paper, film and more.
Support Multi Card Technology
FOH02 features various multi-smart card support. This feature gives it the ability to store information in the smart card.
Slim Design & Color LED
FOH02 is designed with a stylish and slim. Device’s status displays via 3 colors high luminance LED.

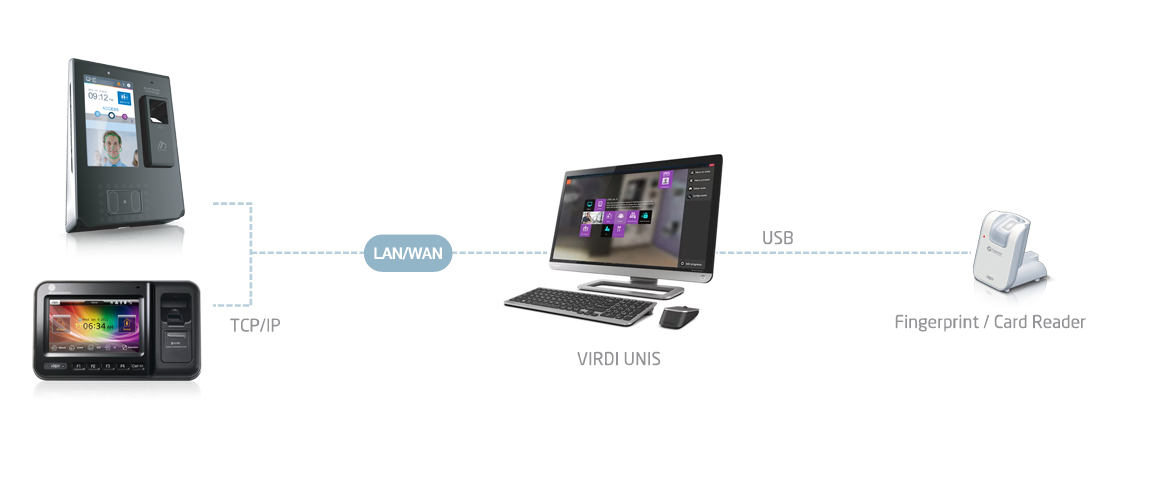

การคอนฟิคระบบ
รายละเอียด
| Model Name | FOH02 |
|---|---|
| Fingerprint Type | Optical |
| Resolution | 500dpi |
| Gray Scale | 256 gray |
| Platen Size ((W X L)) | 16 X 18 mm |
| Sensing Area(W X L) | 15 X 17 mm |
| Auto Sensing | O |
| Speed | 10 frames per second (fps) |
| Interface | USB 2.0(High Speed) |
| Operating Temperature | -20℃ ~ +60℃ |
| Operating Humidity | 10 ~ 90%, non-condensing |
| Dimension (W x H x D) | 74 x 92 x 84 mm(수정) |
| Certifications | KC, CE, FCC, ROHS, WHQL |
| Image Format | WSQ, RAW, BMP |
| Template Type | VIRDI, ISO 19794-2, ANSI 378 |
| LFD | O |
| Operating System | Windows, Linux |
| Card Type | RF: 125KHz proximity card SC: 13. 56 MHz smart card |
| Opertating Software (Server solution) | UNIS, ACServer |
