UBio-X Pro
เครื่องสแกนหน้า & ลายนิ้วมือ
Prime Face & Fingerprint Recognition Terminal
UBio-X Pro Lite is a face authentication system.
It’s equipped with the powerful performance functions
and improved facial recognition algorithm.
คุณสมบัติ
The World’s Best
Illuminance Performance
UBio-X Pro Lite uses our improved face authentication algorithm
to accurately recognize faces in various lighting conditions.
Operating illuminance of up to 30,000Lux.
High Performance Face Algorithm 35,000 Face Templates within 1sec
Equipped with a high definition camera to provide the fastest matching speed while maintaining the highest accuracy.
Massive Memory
UBio-X Pro Lite is equipped with a powerful 1.0 GHz Quad Core Processor. And with it’s built-in large memory capacity allows storage up to 500,000 users, 1,000,000 templates, 10,000,000 event logs and 20,000 image logs of each transaction.
Various Usability
With its 5 inch LCD touch screen, it provides the user with a clean, wide and easy to used graphical interface. UBio-X Pro Lite supports most types of RFID card standards with a single device including 125kHz RF, 13.56 SC, HID Prox and HID iClass.
Various Applications
UBio-X Pro Lite can be used in various applications and environments such as manufacturing factory, bank, large scale integrated security center and more.
โรงงานอาหาร และ วัตถุดิบ
ธนาคาร
ไซต์ก่อสร้าง
ศูนย์วิจัยและพัฒนา
สำนักงาน

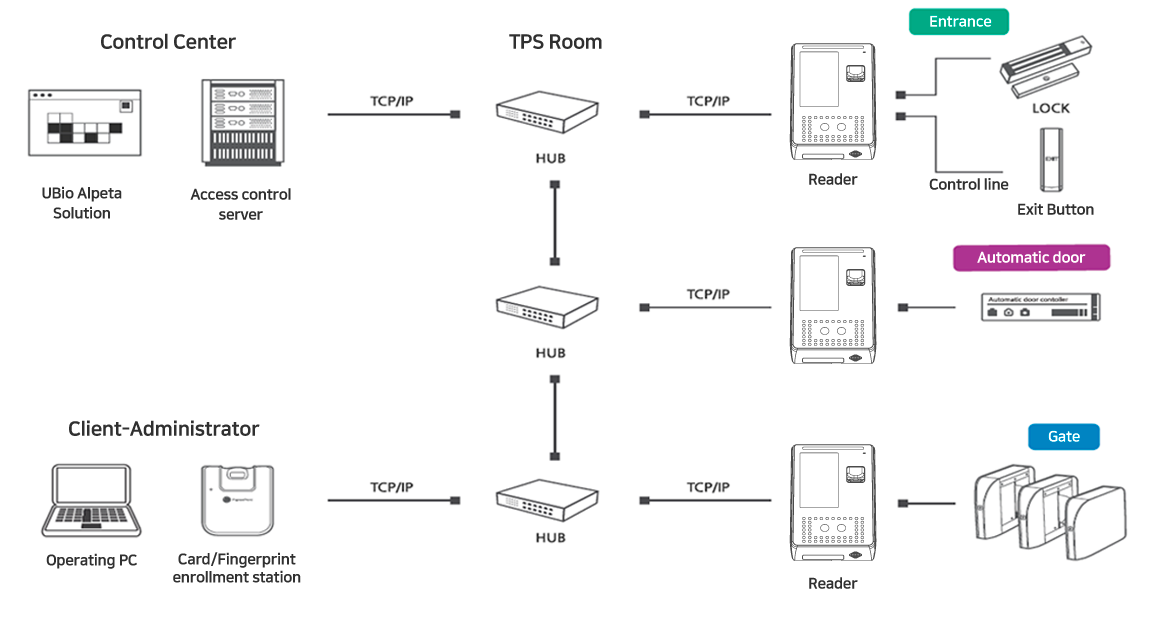

การคอนฟิคระบบ
รายละเอียด
| Model Name | UBio-X Pro Lite | |||
|---|---|---|---|---|
| Authentication Method | Face/Fingerprint/Card | |||
| Dust/Water Resistance | X | |||
| Memory | Max Users | card | (1:1) / (1:N) | 500,000 |
| Fingerprint (Base on one finger enrollment per user) |
1:1 | 500,000 | ||
| 1:N | 100,000 | |||
| Face (Base on five Face enrollment per user) |
1:1 | 100,000 | ||
| 1:N | 7,000 | |||
| Templates | Fingerprint | (1:1) | 1,000,000 | |
| (1:N) | 200,000 | |||
| MAX Templates per Finger | 2 | |||
| MAX Finger per User | 10 | |||
| Face | 1:1 | 1,000,000 | ||
| 1:N | 200,000 | |||
| MAX Templates per Face | 10 | |||
| Logs | 10,000,000 | |||
| Images | 20,000 | |||
| Communication | with server | TCP/IP | ||
| Other | SD Card | |||
| Wireless LAN(Wi-Fi) | Optional | |||
| Wiegand OUT | O | |||
| RS232 | O | |||
| RS485 | O | |||
| Wiegand IN | O | |||
| Display | LCD | 5"Color Touch | ||
| Backlight | O | |||
| Card | 125khz-EM | O | ||
| HID Prox | O | |||
| HID iclass | O | |||
| 13.56MHz Smart Card | O | |||
| Embedded Camera | Dual | |||
| Keypad | Touch Screen | |||
| Function keys | SOFT | |||
| Door Phone | X | |||
| FP Sensor (Platen Area) | 15.5 X 19 mm | |||
| Resolution | 500dpi | |||
| Dimension | (W) X (H) X (D) mm | 149.7 x 208 x 89.7mm | ||
| FRR /FAR | 0.1% / 0.0001% | |||
| Operating Illuminance (lux) | 30,000 | |||
| Operating Temperature | -20 ~ 55℃ | |||
| Opertating Software (Server solution) | UNIS 4.5, UBio Alpeta | |||
ดาวน์โหลด
-
21
2021.01
คู่มือUBio-X Pro Lite UG V1.14 EN4.34 MB -
25
2020.02
คู่มือUBio-X Pro & Pro Lite IG V1.0 REV1.2 EN1.88 MB -
09
2019.08
BrochureUBio-X Pro & Pro Lite Brochure EN35.7 MB -
08
2019.08
โบรชัวร์UBio-X Pro Lite Brochure EN273 KB -
25
2019.06
คู่มือUBio-X Pro & Pro Lite IG V1.0 REV1.1 EN1.57 MB
