BioEntry R2
Compact Fingerprint Reader
BioEntry R2
Compact Fingerprint Reader
Suprema BioEntry R2 is a Compact RFID card & Fingerprint Reader exclusively designed for centralized access control systems. Packed in a slim, mullion-type design, BioEntry R2 provides high-definition fingerprint image capture, minutiae extraction as well as dual-frequency multi RF card reading capability. Combined with Suprema’s intelligent biometric controller, the CoreStation, BioEntry R2 completes biometrics-driven access control system with enhanced simplicity and level of security of centralized system topology.
คุณสมบัติ
Standardized Communications
Open Supervised Device Protocol (OSDP)
Combined with Suprema’s intelligent biometric controller, the CoreStation, BioEntry R2 completes biometrics-driven access control system with enhanced simplicity and level of security of centralized system topology.
Communicates with SmartPhones
Supports NFC – allows you to use your Android smartphone as a key to access. (Not available for BLE support)
- NFC (Near Field Communication)
- Communicates via NFC’s HCE in Android
- Protecting data communications using the AES encryption algorithm
Mullion-type Design
With its 50mm width, BioEtnry R2 perfectly fits in its narrow spaces and door frames.
Dual Frequency, Multi-Smartcard Reader
Featuring dual-frequency RFID card technology, BioEntry R2 supports both LF(125KHz) and HF(13.56MHz) RFID including all RFID card standards. On top of fingerprint credential, BioEntry R2 supports most types of RFID card standards with a single device including MIFARE, DESFire, FeliCa, EM and NFC.

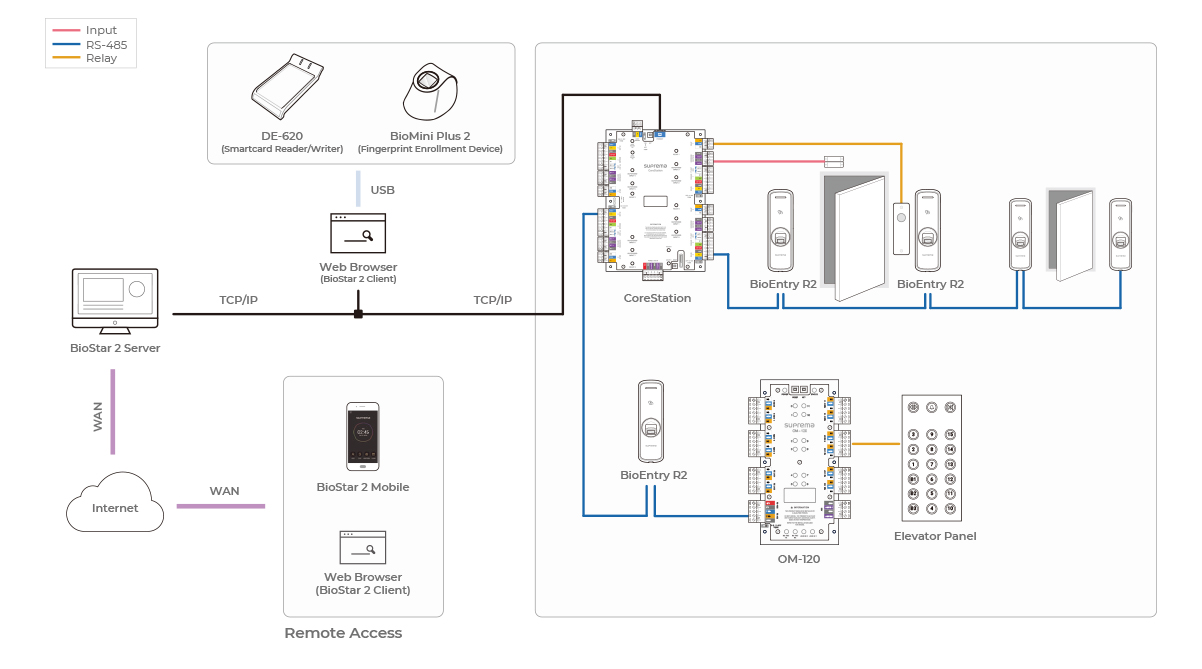

การคอนฟิคระบบ
รายละเอียด
| Model Name | BER2-OD | |
|---|---|---|
| Credential | RF Option | 125kHz EM & 13.56Mhz MIFARE, MIFARE Plus, DESFire EV1/EV21), Felica |
| Mobile Card | NFC | |
| Protections | Ingress Protection | Not supported |
| Vandal Proof | Not supported | |
| Fingerprint | Template | SUPREMA / ISO 19794-2 / ANSI 378 |
| Extractor / Matcher | MINEX certificate and complient | |
| Live Fingerprint Detection | Not supported | |
| General | CPU | 1.0GHz |
| Memory | 32MB Flash + 32MB RAM | |
| LCD Type | Not supported | |
| LED | Multiple colors | |
| Sound | Multi-tone Buzzer | |
| Operating Temperature | -20℃ ~ 50℃ (-4°F ~ 122°F) | |
| Storage Temperature | -40℃ ~ 70℃ (-40°F ~ 158°F) | |
| Operating Humidity | 0% ~ 80%, non-condensing | |
| Storage Humidity | 0% ~ 90%, non-condensing | |
| Weight | Device: 158g Bracket: 39g (Including Washer and bolt) |
|
| Dimension (WxDxH, mm) | 50 x 164 x 37.5 | |
| Temper | Supported | |
| Interface | Wi-Fi | Not supported |
| Ethernet | Not supported | |
| RS-485 | 1ch Slave | |
| Wiegand | Not supported | |
| TTL Input | Not supported | |
| Relay | Not supported | |
| USB | Not supported | |
| SD Card | Not supported | |
| PoE | Not supported | |
| Intercom | Not supported | |
| Electrical | Power | DC 12V |
1)DESFire EV2 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with BioEntry R2.
อุปกรณ์เสริม
Output Module
Multiple Output Extension Module
Door Module
Secure Multi Door I/O Module
ดาวน์โหลด
-
27
2564.10
คู่มือBioEntry R2 IG V1.02 EN1.77 MB -
2ค
2563.08
โบรชัวร์BioEntry R2 Brochure EN1.84 MB -
19
2561.11
คู่มือBioEntry R2 Drilling Template EN430 KB
สินค้าที่เกี่ยวข้อง
CoreStation
