FaceLite
Smart Face Recognition Terminal
FaceLite
Smart Face Recognition Terminal
Suprema FaceLite is the most compact face recognition terminal providing loads of the world’s best features. Powered by Suprema’s latest innovation in facial biometrics, FaceLite offers unrivaled matching speed, accuracy, and level of security. With Suprema’s patented optic engineering, FaceLite achieves up to 25,000 lx of operating illuminance which in turn, brings all-around confidence regardless of lighting conditions. Packed in a compact and an ergonomically-designed structure, FaceLite provides exceptional performance and usability for diverse access control and time attendance sites, large or small.
คุณสมบัติ
Day and night with confidence.
FaceLite uses Suprema’s patented optical technology designed to adapt to the environment, enabling accurate authentication in the midday (up to 25,000 lx) or midnight (0 lx).
Communicates with Smartphones
With Suprema Mobile Access, as a credential, your smartphone is a key to access.
- BLE (Bluetooth Low Energy)
- Communicates via BLE in Android
- Protecting data communications using the AES encryption algorithm
- NFC (Near Field Communication)
- Communicates via NFC’s HCE in Android
* Note that HCE is not available on all Android smartphones. It is recommended to check the smartphone specification, but this feature is widely supported on the latest models. - Protecting data communications using the AES encryption algorithm
- BLE (Bluetooth Low Energy)
- Communicates via BLE in iOS
- Protecting data communications using the AES encryption algorithm
All your cards.
All in one device.
Featuring dual-frequency RFID technology, FaceLite supports most types of RFID card standards with a single device including 125kHz EM and 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, NFC and 2.4GHz BLE.
Security and privacy protection.
The new sensor in BioStation 2 enables the device to capture and process much clearer fingeprint images under less-than-ideal conditions. The new sensor offers excellent wet and dry fingeprint capture performance that allows the device to be used even in harsh environments.
Infra-red based fake face blocking technology (Live Face Detection)
Secured latest smart card and mobile card
Face template encryption (AES-256)

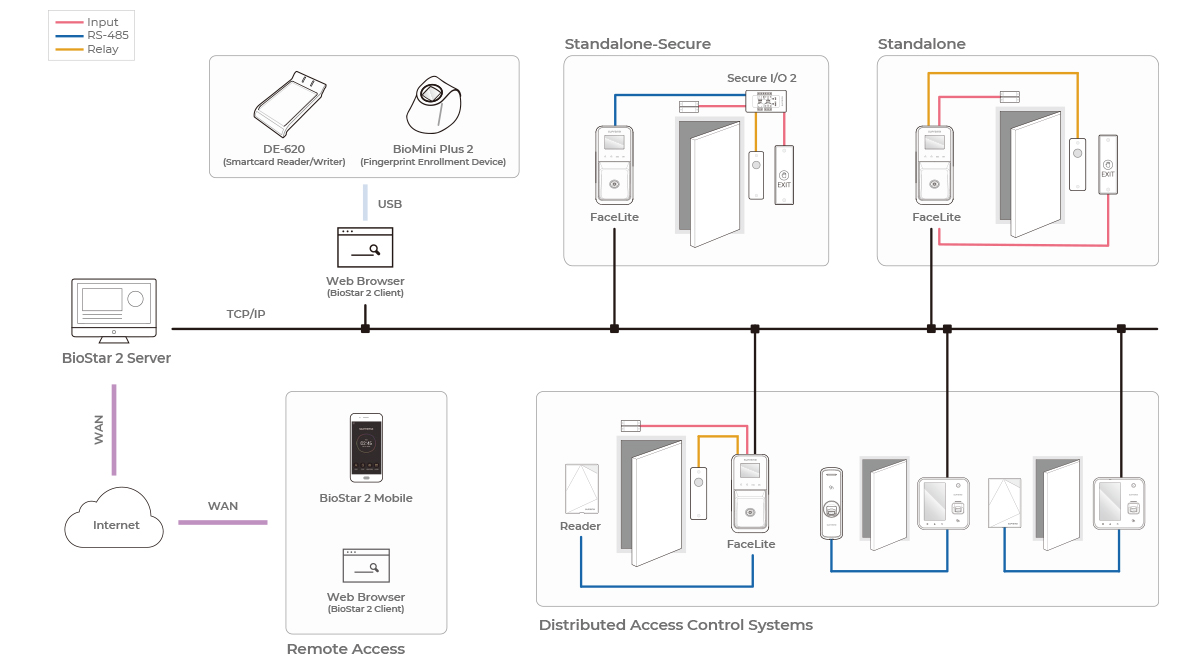

การคอนฟิคระบบ
รายละเอียด
| Model Name | FL-DB | |
|---|---|---|
| Credential | RF Option | 125kHz EM & 13.56Mhz MIFARE, MIFARE Plus, DESFire EV1/EV21), Felica |
| Mobile Card | NFC, BLE | |
| Protections | Ingress Protection | Not supported |
| Vandal Proof | Not supported | |
| Capacity | Max. User | 30,000 |
| Max. Credential (1:N) | Face: 4,000 | |
| Max. Credential (1:1) | Face: 30,000 Card: 30,000 PIN: 30,000 | |
| Face | Template | SUPREMA |
| Extractor/Matcher | SUPREMA | |
| Live Face Detection | Supported | |
| Capacity (Face) | User (1:1) *Base on one face enrollment per user |
30,000 |
| User (1:N) *Base on one face enrollment per user |
4,000 | |
| Max. Face per User | 5 | |
| Text Log | 5,000,000 | |
| Image Log | Not supported | |
| General | CPU | 1.2GHz Quad Core |
| Memory | 8GB Flash + 1GB RAM | |
| Cripto Chip | Supported | |
| LCD Type | 2" color TFT LCD | |
| LED | Not supported | |
| Sound | 24 bit DSP | |
| Operating Temperature | -20℃ ~ 50℃ (-4°F ~ 122°F) | |
| Storage Temperature | -40℃ ~ 70℃ (-40°F ~ 158°F) | |
| Operating Humidity | 0%-80%, non-condensing | |
| Storage Humidity | 0%-90%, non-condensing | |
| Weight | Device: 296g Bracket: 41g (Including Washer and bolt) |
|
| Dimension (WxDxH, mm) | 80x170x76 | |
| Temper | Supported | |
| Interface | Ethernet | 10/100/1000 Mbps, auto MDI/MDI-X |
| RS-485 | 1ch Host or Slave (Selectable) | |
| Wiegand | 1ch Input or Output (Selectable) | |
| TTL Input | 2ch Inputs | |
| Relay | 1 Relay | |
| USB | Supported | |
| SD Card | Not supported | |
| PoE | Not supported | |
| Intercom | Not supported | |
| Electrical | Power | DC 24V |
1)DESFire EV2 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with FaceLite.
อุปกรณ์เสริม
Secure Module
Compact Secure Single Door I/O Module
Output Module
Multiple Output Extension Module
Door Module
Secure Multi Door I/O Module
ดาวน์โหลด
-
14
2565.01
คู่มือFaceLite UG V1.04 EN3.33 MB -
27
2564.10
คู่มือFaceLite IG V1.02 EN4.08 MB -
21
2562.08
คู่มือFaceLite Drilling Template EN354 KB -
22
2562.04
โบรชัวร์FaceLite Brochure EN377 KB
