FaceStation 2

Smart Face Recognition Terminal

FaceStation 2

Suprema FaceStation 2 is an advanced face recognition terminal, providing enhanced features. Powered by Suprema’s innovation in facial biometrics, FaceStation 2 offers unrivaled matching speed, accuracy, and level of security. With Suprema’s patented optic engineering, FaceStation 2 achieves up to 25,000 lx of operating illuminance which in turn, brings all-round confidence regardless of lighting conditions. Packed in an ergonomically-designed structure, FaceStation 2 provides exceptional performance and usability for diverse access control and time attendance sites, large or small.

คุณสมบัติ

High Speed Face Matching

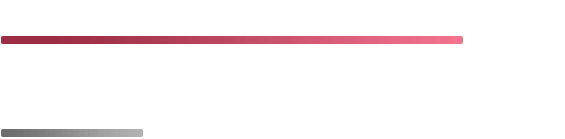

Powered by Suprema’s latest face recognition algorithm and industry-leading 1.4 GHz quad-core CPU, FaceStation 2 provides the world’s fastest matching speed of up to 4,000 match/sec.

Massive Memory Capacity

FaceStation 2 offers a massive memory capacity to manage the largest number of users in its class. A single terminal of FaceStation 2 can accommodate up to 30,000 users, 50,000 face image logs and 5,000,000 text logs.

USERS 30,000

IMAGE LOGS 50,000

TEXT LOGS 5,000,000

Confidence in All Lighting Conditions

With Suprema’s patented IR illumination and optical technique, FaceStation 2 now achieves operating illuminance of up to 25,000 lx, about 5 times brighter than industry average. At 25,000 lx, FaceStation 2 allows uninterrupted face recognition in all possible lighting, not exposed to direct sunlight.

Enhanced Security Features

Infra-red based fake face blocking technology (Live Face Detection)

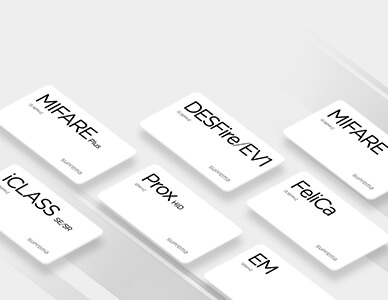

Multi-band RF reading technology supporting latest RFID standards

High quality face image logs

Communicates with Smartphones

With Suprema Mobile Access, as a credential, your smartphone is a key to access.

BLE (Bluetooth Low Energy): Communicates via BLE in Android; Protecting data communications using the AES encryption algorithm

NFC (Near Field Communication): Communicates via NFC’s HCE in Android
* Note that HCE is not available on all Android smartphones. It is recommended to check the smartphone specification, but this feature is widely supported on the latest models.; Protecting data communications using the AES encryption algorithm

BLE (Bluetooth Low Energy): Communicates via BLE in iOS; Protecting data communications using the AES encryption algorithm

Improved Ergonomics for the Greatest Height Range

FaceStation 2 allows the greatest height range of 145 cm–210 cm. With an optional tilt-bracket, FaceStation 2 also accommodates wheelchair users and children.

Android-based Intuitive GUI

On its wide touchscreen LCD, FaceStation 2 offers the industry’s most intuitive graphic user interface. Thanks to the latest Android 5.0 OS, FaceStation 2 features the latest material design concept to provide extremely easy to use GUI, requiring minimal training for both users and system administrators.

Temperature Detection

FaceStation 2 can be combined with Suprema Thermal Camera to detect users with elevated skin temperature. FaceStation 2 with Suprema Thermal Camera measures skin temperature of users passing the access point and limits the access of users with a higher temperature than the preset threshold. It provides an easy connection via USB allowing quick deployment.

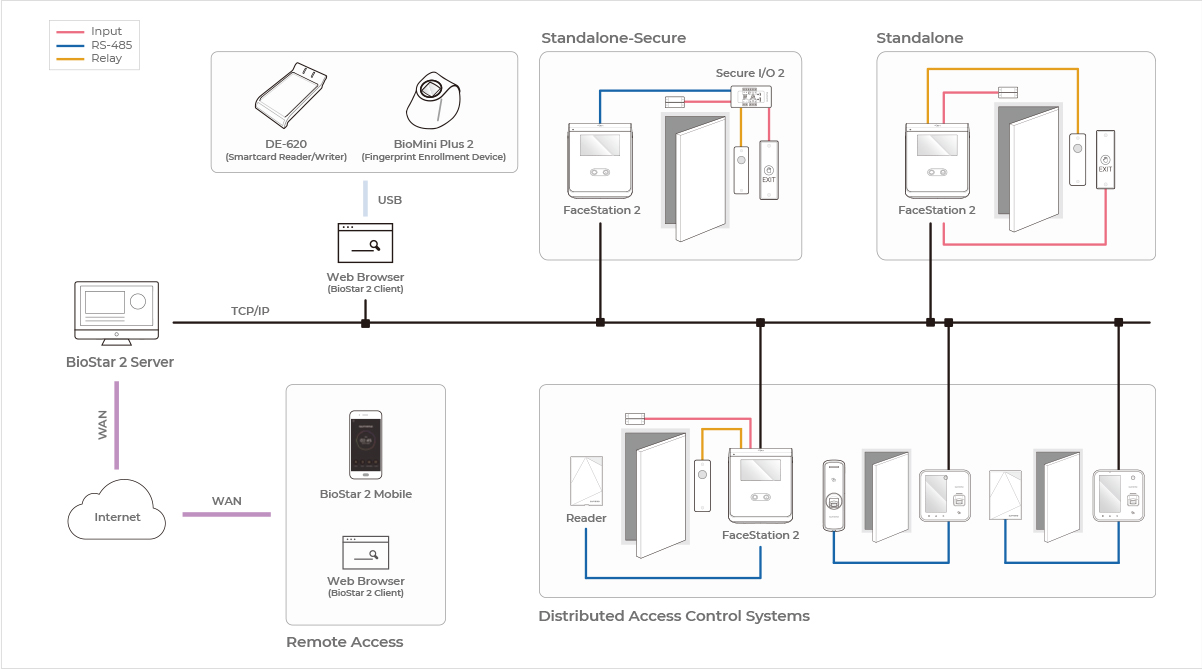

การคอนฟิคระบบ

รายละเอียด

Model Name		FS2-D	FS2-AWB
Credential	RF Option	125kHz EM & 13.56Mhz MIFARE, MIFARE Plus, DESFire EV1/EV2¹⁾, Felica	125kHz EM, HID Prox & 13.56Mhz MIFARE, MIFARE Plus, DESFire EV1/EV2¹⁾, FeliCa, iCLASS SE/SR/Seos
Credential	Mobile Card	NFC	NFC, BLE
Protections	Ingress Protection	Not supported	Not supported
Protections	Vandal Proof	Not supported	Not supported
Capacity	Max. User	30,000	30,000
	Max. Credential (1:N)	Face: 4,000	Face: 4,000
	Max. Credential (1:1)	Face: 30,000 Card: 30,000 PIN: 30,000	Face: 30,000 Card: 30,000 PIN: 30,000
Face	Template	SUPREMA	SUPREMA
	Extractor/Matcher	SUPREMA	SUPREMA
	Live Face Detection	Supported	Supported
Capacity (Face)	User (1:1) *Base on one face enrollment per user	30,000	30,000
	User (1:N) *Base on one face enrollment per user	4,000	4,000
	Max. Face per User	5	5
	Text Log	5,000,000	5,000,000
	Image Log	50,000	50,000
General	CPU	1.4 GHz Quad Core	1.4 GHz Quad Core
	Memory	8GB Flash + 1GB RAM	8GB Flash + 1GB RAM
	Cripto Chip	Supported	Supported
	LCD Type	4" color TFT LCD	4" color TFT LCD
	Sound	24 bit Voice DSP (echo cancellation)	24 bit Voice DSP (echo cancellation)
	Operating Temperature	-20℃ ~ 50℃ (-4°F ~ 122°F)	-20℃ ~ 50℃ (-4°F ~ 122°F)
	Storage Temperature	-40℃ ~ 70℃ (-40°F ~ 158°F)	-40℃ ~ 70℃ (-40°F ~ 158°F)
	Operating Humidity	0%-80%, non-condensing	0%-80%, non-condensing
	Storage Humidity	0%-90%, non-condensing	0%-90%, non-condensing
	Weight	Device: 548g Bracket: 74g (Including Washer and bolt)	Device: 548g Bracket: 74g (Including Washer and bolt)
	Dimension (WxDxH, mm)	141x164x125	141x164x125
	Temper	Supported	Supported
Interface	Wi-Fi	Not Supported	Built-in, IEEE 802.11 b/g
	Ethernet	10/100/1000 Mbps, auto MDI/MDI-X	10/100/1000 Mbps, auto MDI/MDI-X
	RS-485	1ch Host or Slave (Selectable)	1ch Host or Slave (Selectable)
	Wiegand	1ch Input, 1ch Output	1ch Input, 1ch Output
	TTL Input	2ch Inputs	2ch Inputs
	Relay	1 Relay	1 Relay
	USB	USB 2.0 (Host)	USB 2.0 (Host)
	SD Card	Not supported	Not supported
	PoE	Not supported	Not supported
	Intercom	Supported	Supported
Electrical	Power	DC 24V	DC 24V

¹⁾DESFire EV2 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with FaceStation 2.
