BioStation A2

IP Fingerprint Terminal

คุณสมบัติ
การคอนฟิคระบบ
รายละเอียด
อุปกรณ์เสริม
ดาวน์โหลด
สินค้าใกล้เคียง
วิดีโอ

Suprema BioStation A2 is the most advanced fingerprint access control and time attendance terminal featuring Suprema’s next generation biometric technology and security platform. BioStation A2 provides class-leading performance through the World’s best matching performance, uncompromised security and accuracy along with top-notch usability.

คุณสมบัติ

World’s Best Performance

BioStation A2 features a class-leading powerful Quad Core CPU that enhances user experience by offering World’s best matching performance, smooth graphics, and quick response for users. BioStation A2 carries massive 8GB memory to store up to 500,000 users, 5,000,000 text logs as well as 50,000 image logs to accommodate enterprise class sites with room to spare.

World's Best Accuracy

BioStation A2 combines the benefit of new OP5 sensor and improved Suprema fingerprint algorithm to provide world best accuracy. Enlarged sensing area with introduction of new fingerprint capture and processing techniques such as adaptive gain control, distortion compensation and noise reduction allows BioStation A2 to reduce capture error rate in various environments.

Enhanced Security

BioStation A2 features Suprema’s all new Live Finger Detection technology. Using combination of proprietary optics and algorithm technology, BioStation A2 clearly distinguishes fake fingers made from number of different materials to prevent any fraudulent activity.

Improved Usability

BioStation A2 is designed to secure maximum usability for users. 5” IPS LCD touch screen provides wide viewing angles and easy operation that is further extended by special reinforced glass screen that ensures maximum screen visibility. The UI is inspired from Android based material design that is self-explanatory and easy to understand for users.

Premium Design

BioStation A2 ensures its premium status with soft hairline pattern on the front face for sleek and solid look. It is wrapped around with rose-gold colored rim finish that serves as a centerpiece while blending in beautifully with any environment.

Extended Versatility

BioStation A2 shows off extended versatility with its built-in 2MP wide-angle camera that captures high resolution face captures through face detection for image logs. BioStation A2 also supports videophone, PoE, and built-in WiFi along with extensive RF card options to ensure versatility.

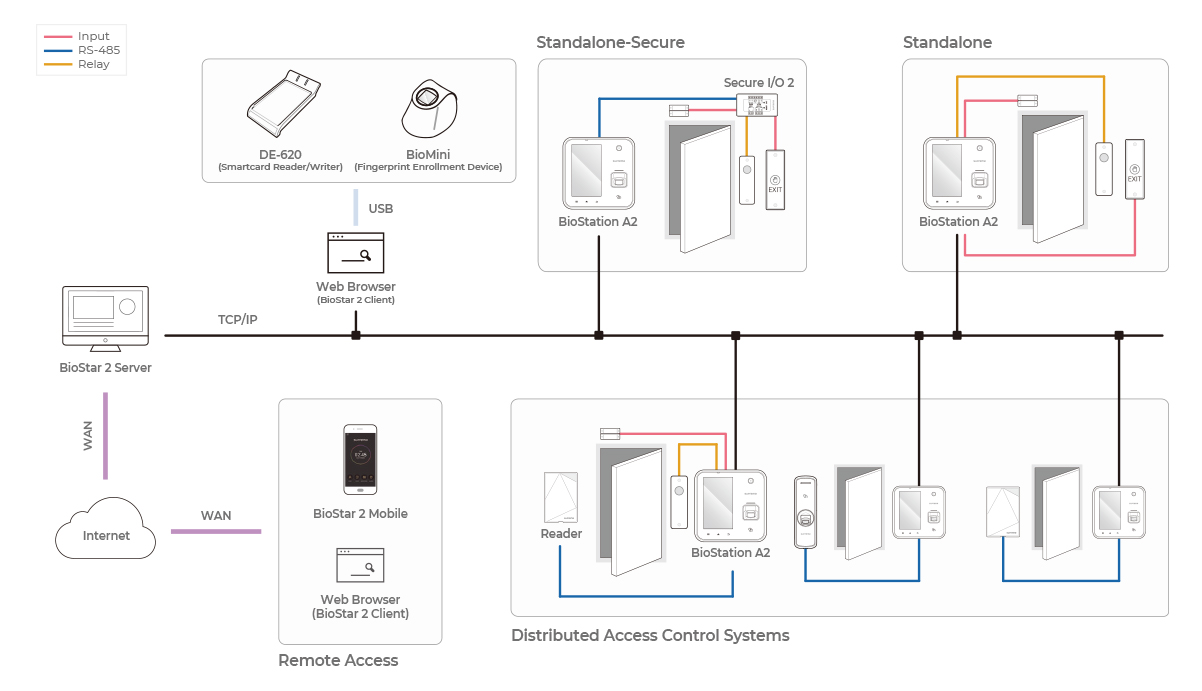

การคอนฟิคระบบ

รายละเอียด

Model Name		BSA2-OMPW	BS2-OEPW	BSA2-OIPW	BSA2-OHPW
Credential	RF Option	13.56Mhz MIFARE, MIFARE Plus, DESFire EV1/EV2¹⁾, Felica	125KHz	13.56MHz iCLASS SE/SR/Seos	125KHz HID Prox
Credential	Mobile Card	NFC	Not supported	NFC	Not supported
Protections	Ingress Protection	Not supported	Not supported	Not supported	Not supported
Protections	Vandal Proof	Not supported	Not supported	Not supported	Not supported
Fingerprint	Template	SUPREMA / ISO19794-2, ANSI-378	SUPREMA / ISO19794-2, ANSI-378	SUPREMA / ISO19794-2, ANSI-378	SUPREMA / ISO19794-2, ANSI-378
	Extractor / Matcher	MINEX certified and compliant	MINEX certified and compliant	MINEX certified and compliant	MINEX certified and compliant
	Live Fingerprint Detection	Supported	Supported	Supported	Supported
Capacity	Max. User	500,000	500,000	500,000	500,000
	Max. Credential (1:N)	Fingerprint: 100,000	Fingerprint: 100,000	Fingerprint: 100,000	Fingerprint: 100,000
	Max. Credential (1:1)	Fingerprint: 500,000 Card: 500,000 PIN: 500,000	Fingerprint: 500,000 Card: 500,000 PIN: 500,000	Fingerprint: 500,000 Card: 500,000 PIN: 500,000	Fingerprint: 500,000 Card: 500,000 PIN: 500,000
	Max. Text Log	5,000,000	5,000,000	5,000,000	5,000,000
	Max. Image Log	50,000	50,000	50,000	50,000
General	CPU	1.0 GHz Quad Core	1.0 GHz Quad Core	1.0 GHz Quad Core	1.0 GHz Quad Core
	Memory	8GB Flash + 1GB RAM	8GB Flash + 1GB RAM	8GB Flash + 1GB RAM	8GB Flash + 1GB RAM
	Crypto Chip	Supported	Supported	Supported	Supported
	LCD Type	5" color TFT LCD	5" color TFT LCD	5" color TFT LCD	5" color TFT LCD
	LED	Multiple colore	Multiple colore	Multiple colore	Multiple colore
	Sound	24bit/Voice DSP (echo cancellation)	24bit/Voice DSP (echo cancellation)	24bit/Voice DSP (echo cancellation)	24bit/Voice DSP (echo cancellation)
	Operating Temperature	-20℃ ~ 50℃ (-4°F ~ 122°F)	-20℃ ~ 50℃ (-4°F ~ 122°F)	-20℃ ~ 50℃ (-4°F ~ 122°F)	-20℃ ~ 50℃ (-4°F ~ 122°F)
	Storage Temperature	-40℃ ~ 70℃ (-40°F ~ 158°F)	-40℃ ~ 70℃ (-40°F ~ 158°F)	-40℃ ~ 70℃ (-40°F ~ 158°F)	-40℃ ~ 70℃ (-40°F ~ 158°F)
	Operating Humidity	0% ~ 80%, non-condensing	0% ~ 80%, non-condensing	0% ~ 80%, non-condensing	0% ~ 80%, non-condensing
	Storage Humidity	0% ~ 90%, non-condensing	0% ~ 90%, non-condensing	0% ~ 90%, non-condensing	0% ~ 90%, non-condensing
	Weight	Device: 440g Bracket: 89g (Including Washer and bolt)	Device: 440g Bracket: 89g (Including Washer and bolt)	Device: 440g Bracket: 89g (Including Washer and bolt)	Device: 440g Bracket: 89g (Including Washer and bolt)
	Dimension (WxDxH, mm)	155 x 155 x 40	155 x 155 x 40	155 x 155 x 40	155 x 155 x 40
	Temper	Supported	Supported	Supported	Supported
Interface	Wi-Fi	Built-in, IEEE 802.11 b/g	Built-in, IEEE 802.11 b/g	Built-in, IEEE 802.11 b/g	Built-in, IEEE 802.11 b/g
	Ethernet	10/100/1000 Mbps, auto MDI/MDI-X	10/100/1000 Mbps, auto MDI/MDI-X	10/100/1000 Mbps, auto MDI/MDI-X	10/100/1000 Mbps, auto MDI/MDI-X
	RS-485	1ch Host or Slave (Selectable)	1ch Host or Slave (Selectable)	1ch Host or Slave (Selectable)	1ch Host or Slave (Selectable)
	Wiegand	1ch Input or 1ch Output	1ch Input or 1ch Output	1ch Input or 1ch Output	1ch Input or 1ch Output
	TTL Input	2ch Input	2ch Input	2ch Input	2ch Input
	Relay	2 Relay	2 Relay	2 Relay	2 Relay
	USB	USB 2.0 (Host)	USB 2.0 (Host)	USB 2.0 (Host)	USB 2.0 (Host)
	SD Card	microSD card (Supports up to 32GB	microSD card (Supports up to 32GB	microSD card (Supports up to 32GB	microSD card (Supports up to 32GB
	PoE	IEEE 802.3af compliant	IEEE 802.3af compliant	IEEE 802.3af compliant	IEEE 802.3af compliant
	Intercom	Supported	Supported	Supported	Supported
Electrical	Power	DC 12V	DC 12V	DC 12V	DC 12V

¹⁾DESFire EV2 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with BioStation A2.
