BioStation 3 Front
BioStation 3 Side

BioStation T2

Fingerprint IP Access Terminal with Face Detection

Smarter Technology, Ultra Performance

BioStation T2
BioStation T2

High Performance Fingerprint IP Terminal

BioStation T2 not only leverages a state-of-the-art device platform to provide an immense variety of features in a single device, but also takes advantage of Suprema’s world-renowned fingerprint technology to ensure speed and accuracy. It is ideal for applications that require a powerful & reliable hardware and an extensive feature set with a convenient user interface.

คุณสมบัติ

Suprema Fingerprint Technology

BioStation T2 is powered by the world-renowned Suprema fingerprint algorithm that has been recognized multiple times by both FVC and NIST MINEX as the most compatible and accurate algorithm in the world. With an exceptionally low error rate and quick verification speed of the Suprema algorithm, the powerful dual-CPU of the device, it pushes the performance envelop to the next level.

FVC : International competition focused on fingerprint verification software assessment MINEX TEST : Minutiae Interoperability Ex change Test b y US Government’ s NIST Placed First in FVC 2004, 2006 / NIST MINEX 2008

Face Detection with Image logs

A picture is said to be worth a thousand words. Thus, rather than simple text based event logs, BioStation T2 can utilize its built-in camera to capture and store real-image based event logs. The image capture also features the Face Detection Technology for added security during the verification process. Proximity sensors and IR LEDs ensures that captured images are up to high standards.

Versatile Interface

BioStation T2 provides extra interface flexibility and multiple installation options for a number of different environments. It supports traditional interfaces such as RS485, RS232, Wiegand, and USB as well as IP interfaces from TCP/IP to Wi-Fi options. The I/O ports can be extended by using the Secure I/O accessory.

Beautiful Design

In order to utilize the endless features on BioStation T2, the device features a 5.0 inch clear LCD screen as the center of the device. The large screen and the beautifully designed, intuitive UI allows for easy navigation through the device’s features, which results in a premium user experience.

Power-Over-Ethernet

Power-Over-Ethernet

BioStation T2 embeds a PoE (Power over Ethernet) module that supplies power to the device through the same transmission cable as the data. This allows the device to be powered and controlled through just a single Ethernet cable, allowing quick and easy installation.

การคอนฟิคระบบ

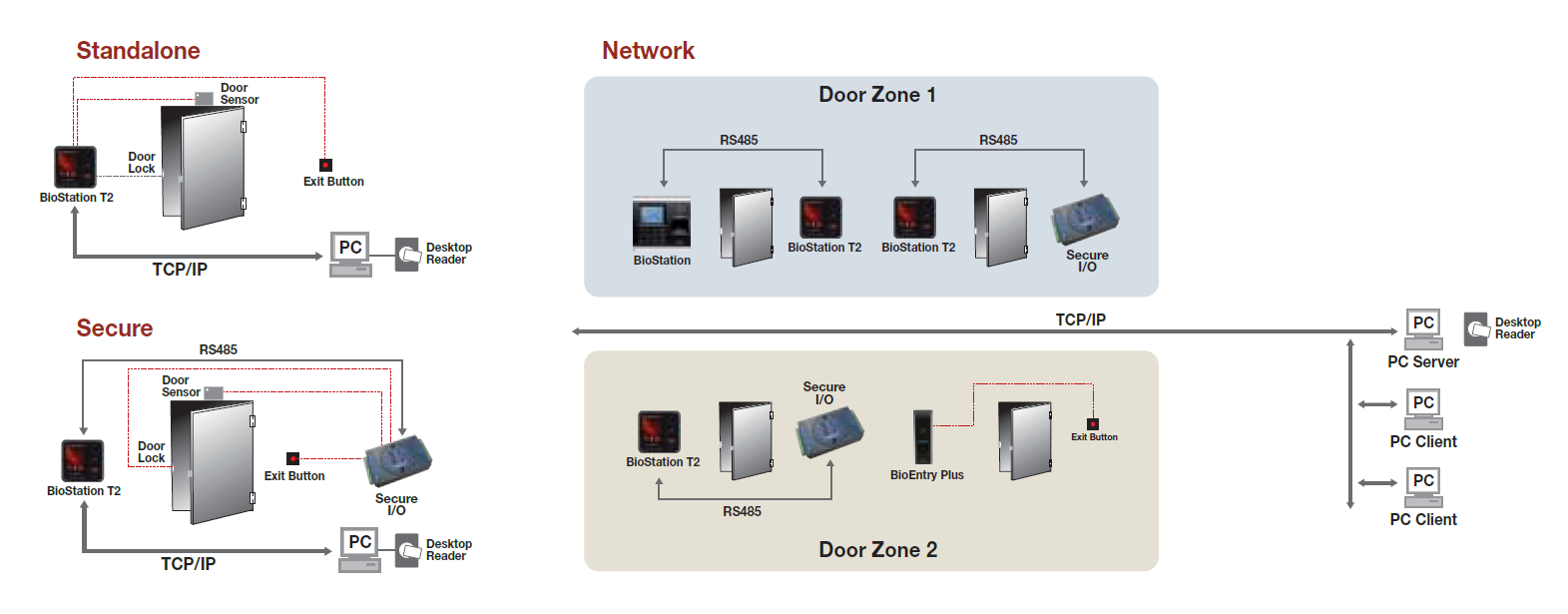

BioStation T2 System Config

รายละเอียด

BioStation T2
CPU 667MHz RISC, 533MHz DSP
Memory 1GB Flash, 256MB RAM
LCD 5.0 inch WVGA touchscreen
Fingerprint Sensor Optical
Camera Face detection & videophone
RF Card Options EM, Mifare / DesFire
Template Capacity 400,000 (1:1), 20,000 (1:N)
Max User 200,000
Log Capacity Fingerprint: 1,000,000 / Image: 5,000
PoE O
Interfaces Wireless LAN(optional), TCP/IP, Wiegand, 2ch RS485, RS232, 4 x TTL I/O, 2 x Relay, USB (Host & Slave), SD card slot
Tamper Switch
Sound 16 bit Hi-Fi voice & sound indication
Operating Temp. - 20°C ~ 50°C
Operating Voltage 12vDC
Dimensions (mm) 155(W) x 155(H) x 40(D)
